Flashing Boots

Lifetite Metal Products

Flashing Boots

LifeTite Metal Products offers premium roof penetration “Roofjack” flashing boots in a wide range of sizes and colors. Properly installed pipe flashing boots will keep your roof system water-tight and well kept. LifeTite partners with SealTite to provide customers with exceptional metal roofing components.

Roofjack
  • Manufactured from EPDM or silicone rubber, ROOFJACK is compounded for maximum resistance to ozone, UV light, & temperature extremes.
  • Flexible aluminum base will allow the flashing to conform to any metal roof configuration. Pipe location can be centered in the flat of the panel or the rib. Urethane sealant & self-drilling screws complete the installation
  • ROOFJACK are well-marked so they can easily be cut with shears to fit exactly the pipe size used.
  • ROOFJACK are available in Black or Gray EPDM as well as Red or Gray high temperature Silicone.
  • High Temperature Silicone is Now Available in Gray

For specs & technical information visit SealTite.com

Standard EPDM Pipe Flashing Boots & High Temperature “Silicone” Pipe Flashing Boots

Square Base Pipe Size Base Dimension Standard Colors
MINI 1/8”-3/4” 2 - 1/4” (57mm) Black/Gray EPDM & Red Silicone
#1 1/4”-2-3/4” 4-1/2” (114mm) Black/Gray EPDM & Red Silicone
#2 7/8”-4” 6” (152mm) Black/Gray EPDM & Red Silicone
#3 1/4”-5-3/4” 8” (203mm) Black/Gray EPDM & Red Silicone
#4 2-3/4”-7” 10” (254mm) Black/Gray EPDM & Red Silicone
#5 4”-8-1/4” 11” (279mm) Black/Gray EPDM & Red Silicone
#6 4-3/4”-10” 12” (304mm) Black/Gray EPDM & Red Silicone
#7 5-1/2”-11-1/2” 14” (355mm) Black/Gray EPDM & Red Silicone
#8 6-3/4”-13-1/2” 17” (431mm) Black/Gray EPDM & Red Silicone
#9 9-1/2”-20-1/2” 25” (635mm) Black/Gray EPDM & Red Silicone
MAXI 12”-28-1/2” 34” (863mm) Black/Gray EPDM & Red Silicone

Flashing Boot Color Selection

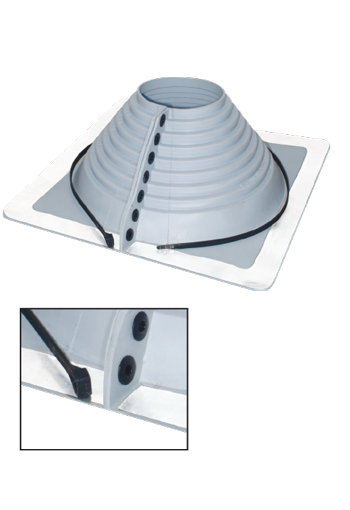

Retro-Fit EPDM Pipe Flashing Boots w/ zipper

Retro-Fit Pipe Size Base Dimension Standard Colors
#1 1/2” - 4” (12.7 - 101.6mm) 8” - 3/16” (80.96mm) Black EPDM/Grey EPDM/Red Silicone
#2 4” - 9-1/4” (101.6 - 135mm) 14-1/4” (361.95mm) Black EPDM/Grey EPDM/Red Silicone
#3 9-1/4” - 16-1/4”(235 - 412.8mm) 21-1/2” (546.1mm) Black EPDM/Grey EPDM/Red Silicone

For specs & technical information visit SealTite.com.
